- \ Aluminum honeycomb panel "HIVE"

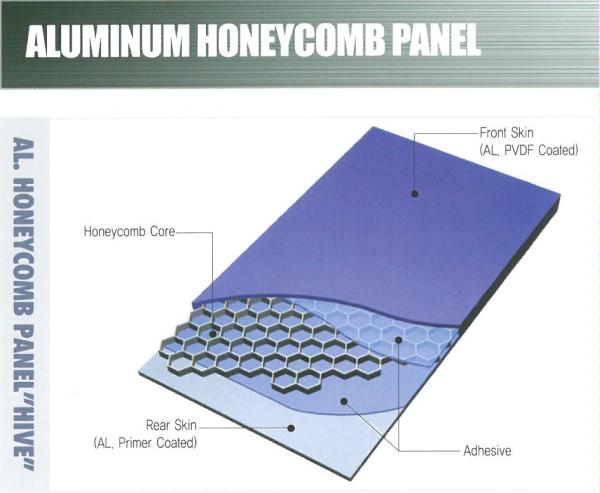

Honeycomb core is made of thin aluminium in hexagonal type of honeycomb. With its remarkable lightweight and strong rigidity, the honeycomb core has been used for the aircraft and ship.
| Type | Total Thickness | Front Skin | Reverse Skin | Weight | Rigidity | SectionModulus |
|---|---|---|---|---|---|---|
| DH-06 | 6.0mm | 1.0mm | 0.5mm | 4.9kg/m2 | 0.71KNm2/m | 2.5cm2/m |
| DH-08 | 8.0mm | 1.0mm | 0.5mm | 5.1kg/m2 | 1.2KNm2/m | 3.5cm2/m |
| DH-10 | 10.0mm | 1.0mm | 1.0mm | 5.3kg/m2 | 2.19KNm2/m | 4.5cm2/m |
| DH-20 | 20.0mm | 1.0mm | 1.0mm | 7.4kg/m2 | 13.90KNm2/m | 19.0cm2/m |
| DH-25 | 25.0mm | 1.0mm | 1.0mm | 7.8kg/m2 | 22.17KNm2/m | 24.0cm2/m |
Various thickness upto 100mm is available upon buyer’s request
Standard Panel Size & Tolerance Width : 1200mm, 1500mm (+/-2mm) Length : Max. 5,000mm (+/-4mm)
Thickness: (+/-0.2mm)
Fire Behavior
BS476 Part7 Class 1
BS476 Part6 I=0.0, Ii=0.0
BS476 Part4 Non-Combustible
